Horizontal winding series

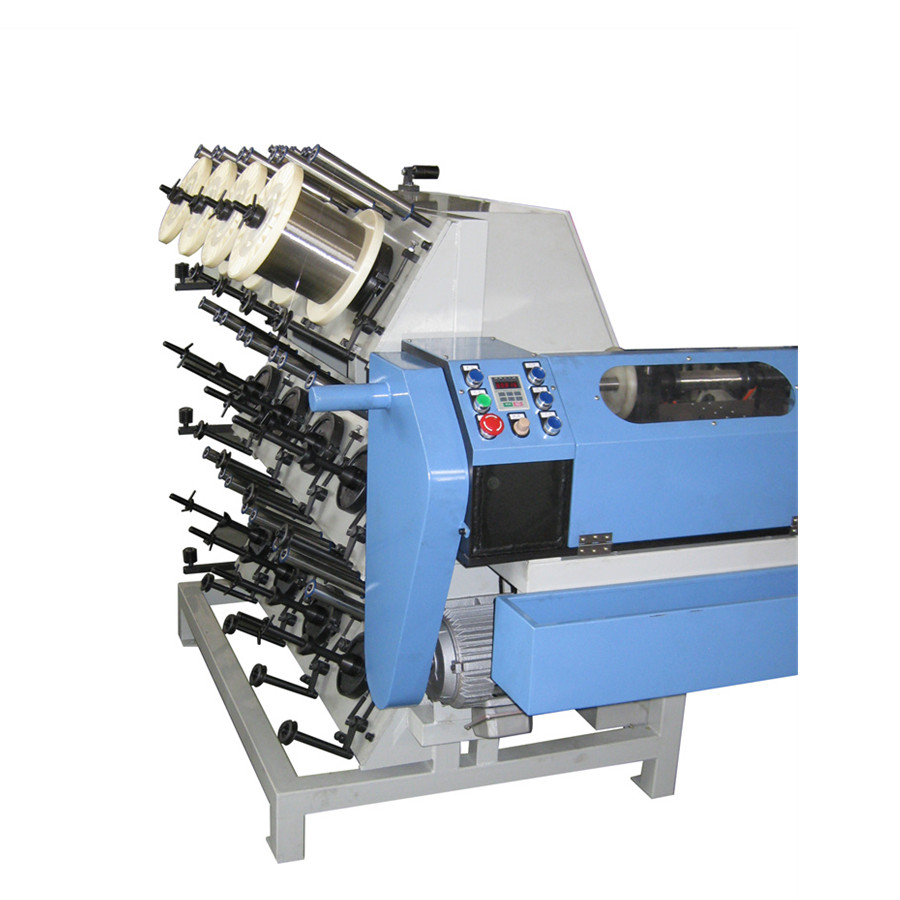

BFHG-255C series automatic steel wire winding machine is a new type of steel wire winding equipment developed by our company. The equipment consists of three parts: winding head, pay-off system and electric control system. It can wind up to 16 strands of wire to the bobbin which are used by the wire braiding machine. This model is widely used in steel wire production, steel wire braided hydraulic hose, stainless steel wire sleeve and other factories.

Features as follows:

  • Wire drape difference is less than 50mm,(8 wires), each wire is equipped with an independent control unit, which is controlled by a precision sensor, so that the tension of the wire is kept constant.
  • Winding speed is 0-560m /min,fast, accurate and stable.
  • Metering length is accurate, and the length error of each bobbin is less than 10m.
  • Added special compensation device, with functions of sorting and winding assistance, to prevent accidental wire breaking off and stop during the process of winding.
  • It is convenient to change the type of formula. Enter the winding speed, bobbin size, wire diameter, number of strands, and winding length in the user interface to automatically wind.
  • Metering count complete. machine error automatic stop ,When broken wire out of-wire, air pressure defect,etc and set length reached ,machine automatically stops and send an alarm.
  • Pay off system can be custom designed per request to wind up to 16 strands wires per bobbin.
