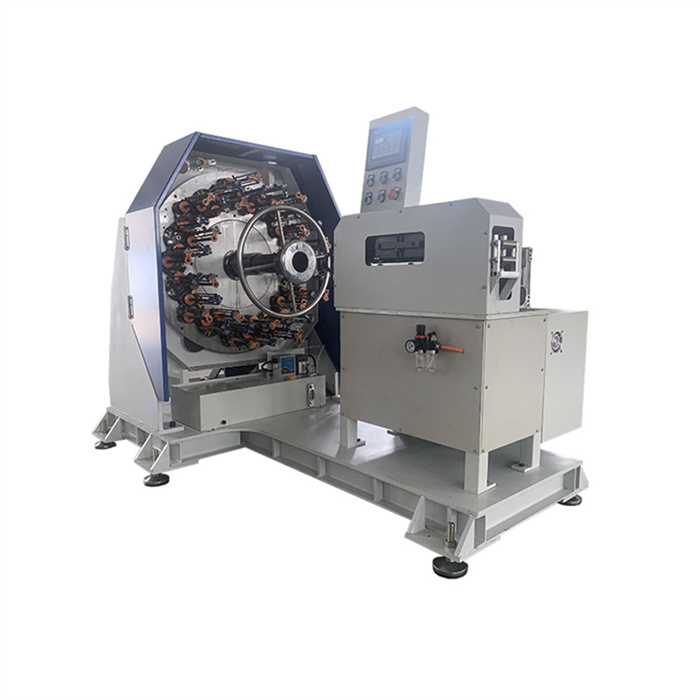

BFB-140W series horizontal automatic braider

wire braiding equipment
wire braiding machine
yarn braiding machine

BFB-140W series horizontal automatic braider are widely used in various industries such as air conditioner hose ，high pressure washer hose, power steering hose ，pressure resistant epdm hose ，brake hose , cable .etc for braiding dipped line aramid fiber.cotton yarn .glass fiber , carbon fiber . stainless stee lwire ,etc. Suitable for braid of soft & hard tube and big tube.

• Big volume bobbin , capacity reaches 1300cm*shortens wire change period ,capable for long meter braiding.
• One worker can watch over several machines.machine stops & alarms when broken wire out of wire out of tubing or rubber sheet detected.
• CNC controlled,easy to adjust braid pitch(angle) & monitor status, data storage and safety protection.
• Patented In house designed plate with guide improve productivity and prolong machine life,3 years warranty.
• Oil collecting circulating periodical automatic lubrication system., less oil stains.
• Low noise, tested noise< 78dB for enclosed braider, safe and environmental friendly.
• Networked Intelligent Production available per customer's request.

• Type	carier per deck	carrier speed RPM	braiding machine power	hauloff motor power	braiding pitch set up	carrier tension	braided hose OD
  BFB24W-140CF	24	42rpm(max)	2.2KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤24mm
  BFB24W-140CFⅡ	24	42rpm(max)	2.2KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤24mm
  BFB24W-140CFI	24	42rpm(max)	2.2KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤24mm
  BFB36W-140C	36	2Brpm(max)	4.0KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤36mm
  BFB36W-140CF	36	28rpm(max)	4.0KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤36mm
  BFB36W-140CFI	36	2Brpm(max)	4.0KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤36mm
  BFB36W-140CFII	36	34rpm(max)	4.0KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤36mm
  BFB36W-140CFYND	36	34rpm(max)	4.0KW	1.5KW	Electronic parameter set	0.4kg—5.0kg	≤36mm
  BFB48W—140CFⅡ1	48	21rpm(max)	5.5KW	0.4KW	Electronic parameter set	0.4kg—5.0kg	≤48mm
  BFB96W-140CFZJ	96	5rpm(max)	7.0KW	1.5KW	Electronic parameter set	0.4kg—5.0kg	≤96mm

•
