high speed steel wire winding machines for sale bobbin winding machine price
Greenland Technology's high speed steel wire winding machines is the auxiliary equipment required for automatic braiding machine, which is composed of three parts: winding and arrangement, wire release system and electroniccontrol system, Up to 16 wires can be stranded onto the spools used in the braiding machine. This model is widely used in metal wire production, braided metal wire hydraulic pipes, stainless steel wire mesh sleevesand other production enterprises.
From the technical point of view, this series of high-speed steel wire winding machines adopt steel wire twining type, spindle constant tension pay-off, pre-forming on the machine, and combined with wire splitting device for steel wire winding.

GET FREE QUOTE

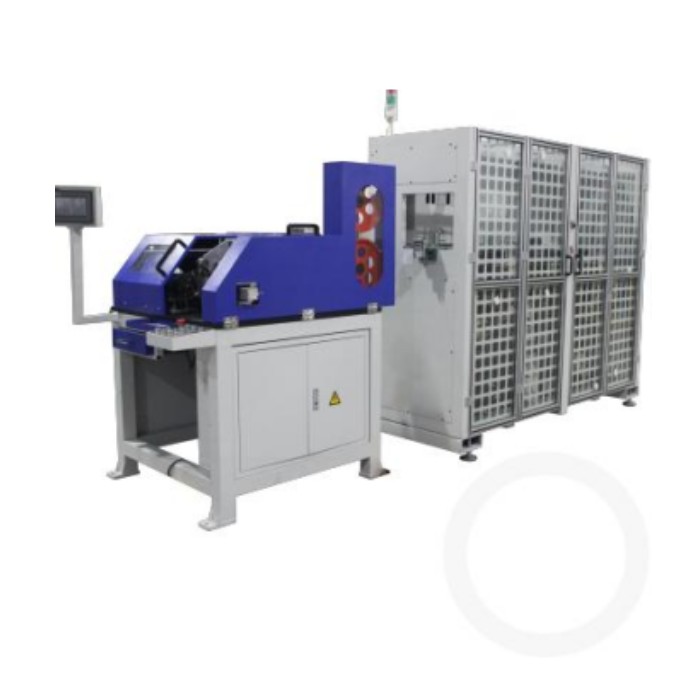

high speed steel wire winding machines for sale bobbin winding machine price

Overview of high speed winding machines :

Greenland Technology's high speed steel wire winding machines is the auxiliary equipment required for automatic braiding machine, which is composed of three parts: winding and arrangement,

wire release system and electroniccontrol system, Up to 16 wires can be stranded onto the spools used in the braiding machine. This model is widely used in metal wire production, braided metal wire hydraulic pipes,

stainless steel wire mesh sleevesand other production enterprises.From the technical point of view, this series of high-speed steel wire winding machines adopt steel wire twining type, spindle constant tension pay-off,

pre-forming on the machine, and combined with wire splitting device for steel wire winding.

winding machine for hose
high speed winding machines
steel wire winding machine
bobbin winding machine
bobbin winding machine price

Features:

Key Features of the CZ Series Steel Wire Winding Machine:

1. Efficient online process that saves time. Thanks to the multi-strand online system, the time spent online is reduced by about two-thirds compared to using a single steel wire.
2. Constant pay-off tension. With spindle-controlled tension, consistent tension is maintained, making it particularly useful for winding smaller pipes and applying soft core winding techniques, preventing “pipe strangulation.”
3. The steel wire is wound very evenly on the rubber hose, avoiding issues like jumping or back strands. This is achieved with a wire straightener made up of a splitter and die, and the spindle’s constant pay-off ensures a smooth and even winding.
4. PLC automatic control, where the winding machine’s speed is synchronized with the tractor, ensuring stable winding motion.
5. User-friendly interface, allowing operators to set and modify winding parameters for each layer easily.

bobbin winding machine applications:

*Sanitary hose *Teflon hose *Hydraulic hose *High pressure wire/rubber/oil hose *SS wire sleeve *Air conditioning hose for car *car and motor rubber hose *sprayer rubber hose
