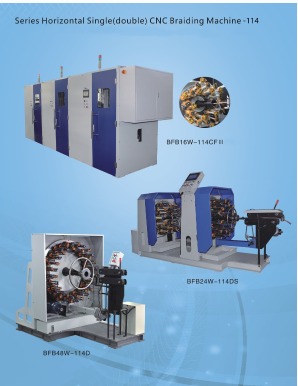

BFB-114W series horizontal automatic braider

BFB-114W series horizontal automatic braider is suitable for hard core, soft core braiding, single & multiple layer. Widely used in various industries such as: automobile brake tube, automobile air conditioner hose, wire & cable .etc ,suitable for braiding stainless steel wire ,cotton yarn, glass fiber, aramid yarn, carbon fiber and other metallic wire and composite yarn.

Main Features

  • One worker can watch over several machines, machine stops & alarms when broken wire, out of wire, out of tubing or rubber sheet detected.
  • CNC controlled , easy to adjust braid pitch (angle) &monitor status, data storage and safety protection.
  • Productivity = carrier pitch (RPM) braid pitch(mm/min) ,maximum carrier rpm reaches 50rpm.
  • Good outer look, professional industry design, patented outer look design.
  • Safe & environmental friendly , low noise , tested noises 78dB for enclosed braider.
  • Automatic lubrication by Oil collecting circulating periodical automatic lubrication system.
  • Networked Intelligent Production available per customer's request.
  • ODM custom design available.

Type
carier per
deck

carrier speed
[RPM

braiding machine
power

hauloff motor
power

braiding pitch set up

carrier tension

braided hose
OD

weight
BFB16W-114CFII 16 80rpm(max) 1.5KW*3 0.4KW electronic parameter set 0.4kg—5.0kg ≤20mm 850kg
BFB24W-114C 24 40rpm(max) 1.5KW 0.4KW electronic parameter set 0.4kg—5.0kg ≤24mm 300kg
BFB24W-114CFS 24 42rpm(max) 2.2KW*2 0.4KW electronic parameter set 0.4kg—5.0kg ≤24mm 530kg
BFB24W-114D 24 40rpm(max) 1.5KW   mechanical variable speed drive 0.4kg—5.0kg ≤24mm 300kg
BFB24W-114DS 24 40rpm(max) 1.5KW*2 0.4KW electronic parameter set 0.4kg—5.0kg ≤24mm 530kg
BFB32W-114D 32 44rpm(max) 2.0KW   mechanical variable speed drive 0.4kg—5.0kg ≤32mm 360kg
BFB36W-114C 36 29rpm(max) 3.0KW 0.55KW electronic parameter set 0.4kg—5.0kg ≤36mm 400kg
BFB36W-114CI 36 29rpm(max) 3.0KW 0.55KW electronic parameter set 0.4kg—5.0kg ≤36mm 400kg
BFB36W-114D 36 29rpm(max) 3.0KW   mechanical variable speed drive 0.4kg—5.0kg ≤36mm 400kg
BFB48W-114C 48 15rpm(max) 5.5KW 0.55KW electronic parameter set 0.4kg—5.0kg ≤48mm 400kg
BFB48W-114CF 48 15rpm(max) 5.5KW 0.55KW electronic parameter set 0.4kg—5.0kg ≤48mm 580kg
BFB48W-114D 48 20rpm(max) 5.5KW   mechanical variable speed drive 0.4kg—5.0kg ≤48mm 580kg
