shower hose making machine braided nylon copper hose knitting machine

GET FREE QUOTE

shower hose making machine braided nylon copper hose knitting machine

Braiding Materials: * Stainless steel wire * Nylon wire* Aluminum wire * Carbon steel* Polyester yarn* Cotton yarn* Aramid fiber

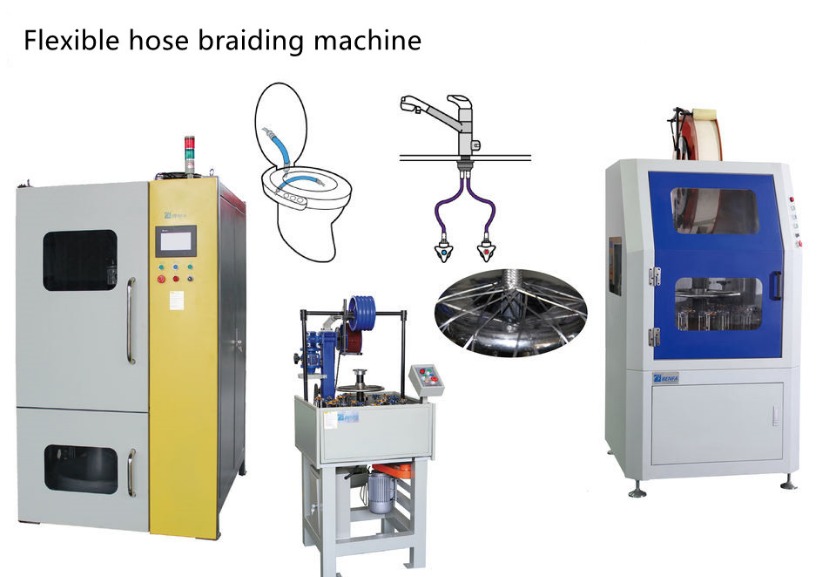

Applications: *Sanitary hose *Teflon hose *Hydraulic hose *High pressure wire/rubber/oil hose *SS wire sleeve *Air conditioning hose for car *car and motor rubber hose *sprayer rubber hose

shower hose making machine
hose knitting machine
copper braiding machine
nylon braiding machine

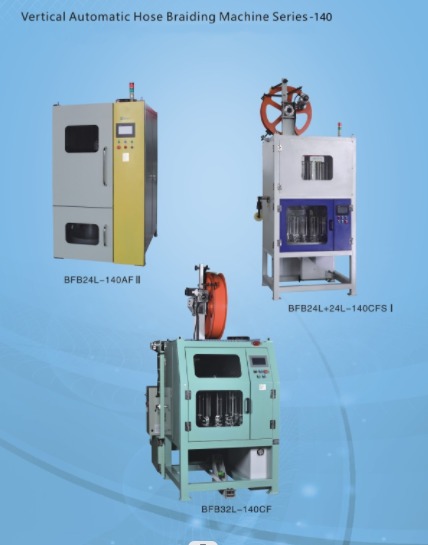

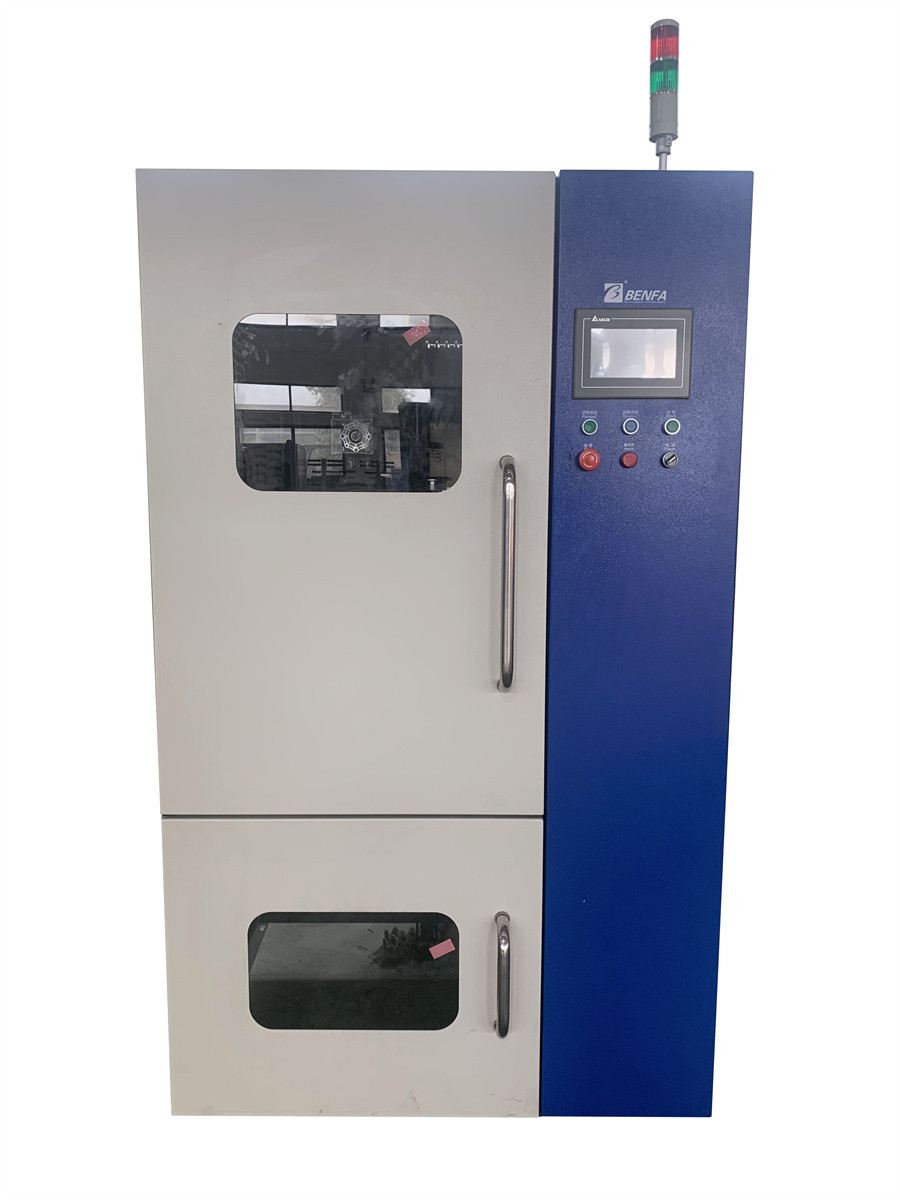

140L Series vertical braiding machine

140L Series vertical braiding machine apply in sanitary cable ,high pressure rubber hose field. braiding material stainless steel wire ,textile glass fiber .

High automatic extent broken ,empty bobbin or no tube automatic machine self-closed.
Adopt adjustable speed to accommodate pitch.don't need to change gear.
High efficiency production three times than present usual machine per hour ,the max production reach to 98m/hour
Low noise ,transmission and pulling system adopt absorbing sound ,reducing shake and inserting equipment.
Easy maintenance ,transmission flexible structure easy install and remove
We can design the machine as customer request

Type	carrier per deck	carrier speed [RPM]	braiding machine power	haul off motor power	braiding pitch set up	carrier tension	braided hose OD	Weight
BFB16L-140CFS	16	55rpm(max)	1.5KW*2	0.75KW	electronic parameter set	0.4kg-5.0kg	≤16mm	300kg
BFB20L_140B	20	45rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤20mm	350kg
BFB20L_140B II	20	45rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤20mm	350kg
BFB20L-140BF	20	45rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤20mm	350kg
BFB20L-140CF	20	44rpm(max)	1.5KW	0.55Kw	electronic parameter set	0.4kg-5.0kg	≤20mm	350kg
BFB24L-140CFS	24	42rpm(max)	1.5KW*2	0.55KW	electronic parameter set	0.4kg-5.0kg	≤24mm	580kg
BFB24L-140AF	24	37rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB24L-140AF II	24	37rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB24L-140B	24	37rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB24L-140B II	24	37rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB24L-140BF	24	37rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB24L-140CF	24	42rpm(max)	1.5KW	0.55KW	electronic parameter set	0.4kg-5.0kg	≤24mm	380kg
BFB20L+24L-140CFS I	24	37rpm(max)	1.5KW*2	0.75KW	electronic parameter set	0.4kg-5.0kg	≤24mm	700kg
BFB24L+24L-140CFS I	24	37rpm(max)	1.5KW*2	0.75Kw	electronic parameter set	0.4kg-5.0kg	≤24mm	700kg
BFB24L-140CS	24	37rpm(max)	1.5KW*2	0.55Kw	electronic parameter set	0.4kg-5.0kg	≤24mm	630kg
BFB24L-140D	24	37rpm(max)	1.5KW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB24L-140DI	24	37rpm(max)	1.5xW		mechanical variable speed drive	0.4kg-5.0kg	≤24mm	380kg
BFB32L-140A	32	28rpm(max)	2 2KW		mechanical variable speed drive	0.4kg-5.0kg	≤32mm	430kg
BFB32-140B	32	28rpm(max)	2 2KW		mechanical variable speed drive	0.4kg-5.0kg	≤32mm	430kg
BFB32L-140CF	32	28rpm(max)	2.2KW	0.75KW	ectronic pararmeter set	0.4kg-5.0kg	≤32mm	430kg
BFB36L-140AF	36	29rpm(max)	2.2KW		mechanical variable speed drive	0.4kg-5.0kg	≤36mm	520kg
BFB36L-140B	36	29rpm(max)	2.2KW		mechanical variable speed drive	0.4kg-5.0kg	≤36mm	520kg
BFB36L-140BF	36	29rpm(max)	2 2xw		mechanical variable speed drive	0.4kg-5.0kg	≤36mm	520kg
BFB36L-140CF	36	29rpm(max)	2.2KW	0.75KW	electronic parameter set	0.4kg-5.0kg	≤36mm	520kg
BFB36L-140D	36	29rpm(max)	3.0KW		mechanical variable speed drive	0.4kg-5.0kg	≤36mm	520kg
BFB48L-140B	48	25rpm(max)	3.0KW		mechanical variable speed drive	0.4kg-5.0kg	≤48mm	550kg
BFB48L-140CF	48	25rpm(max)	3.0Kw	0.75KW	electronic parameter set	0.4kg-5.0kg	≤48mm	550kg
