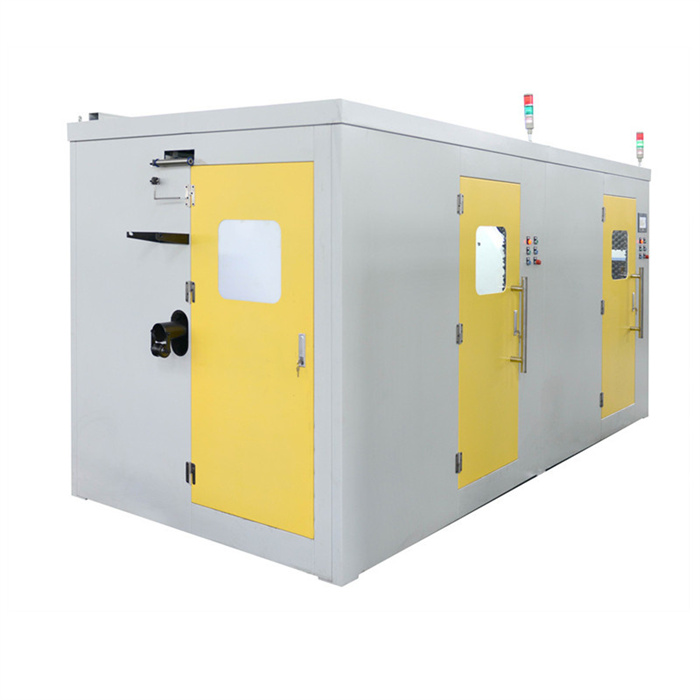

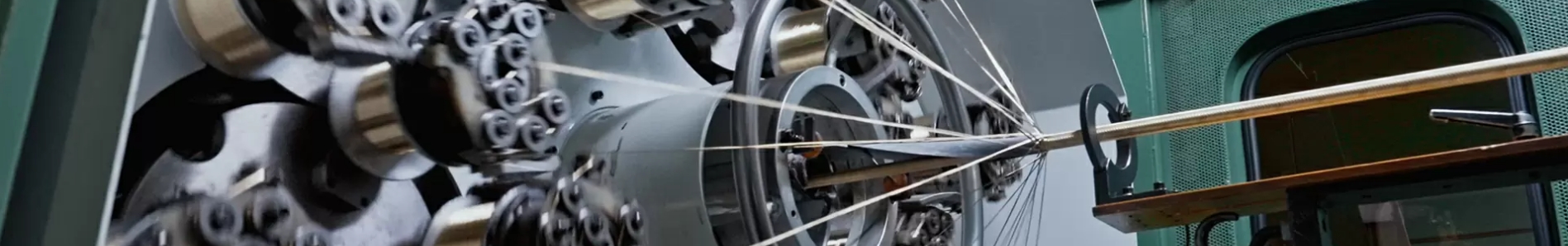

Overview of the wire braider Braiding Machine:
Our braiding machine is an innovative model our company developed based on the RB-2 braiding machine structure. This machine offers high braiding speed and enhanced production efficiency.
It employs a double-rotating thread-passing design, with the inner and outer spindle groups rotating in opposite directions. Each spindle group’s rotation direction remains unchanged during the braiding process.
The movement paths of the inner and outer spindles are circular and shorter than those of other braiding machines, allowing for a faster operational speed.
1. Large spindle wire capacity: 14KG per spindle (steel wire).
2. The spindle compensation device balances the distance difference between the outer ring and the opposite braid point of the inner ring, maintaining fabric tension within 76-90% of the spindle pay-off tension. It features a stepless pay-off structure for long service life and low failure rate.
3. High running speed.
4. Independent motors drive the main engine and tractor. With PLC control and an intuitive interface, both are precisely managed to meet optimal braiding process requirements.
5. Slow tram drive functionality.
6. Independent drive for the tractor.
7. Automatic lubrication system.
8. Equipped with detection systems for broken wires, tube blanks, and medium film, along with tension monitoring. The machine automatically alarms and stops if any issue arises.
9. Intelligent fault alarm and parking prompt function.
stainless wire braiding machine
rubber braiding machine.html" class="link_keywords">hose braiding machine
Specifications:
| Equipment Type | BZH2 | BZH3 | ||||
| Braid Structure | 2X2 | 3X3 | ||||
| Spindle Number | 20 | 24 | 36 | 18 | 24 | 36 |
| Maximum Speed (rpm) | 45 | 37.5 | 20 | 86.3 | 64.7 | 43.1 |
| Center Height (mm) | 1125 | 1125 | 1365 | 1125 | 1125 | 1365 |
| Braiding Diameter (mm) | 8.5~23 | 11.5~31 | 15~45 | 8.5~23 | 11.5~31 | 15~45 |
| Wire Capacity (Steel Wire) | 14Kg | 14Kg | 14Kg | 14Kg | 14Kg | 14Kg |
| Total Power (kW) | 20 | 22 | 33 | 20 | 27 | 38 |
ruber hose making Applications:
*Hydraulic hose *High pressure wire/rubber/oil hose *SS wire sleeve *Air conditioning hose for car *car and motor rubber hose *sprayer rubber hose
our hose making machine can produce below ruber hose specifications.
| TYPE | SIZE(") | IN(mm) | OD(mm) |
| SAE J517 100 R1AT | 1/4 | 6.4 | 12.6 |
| SAE J517 100 R1AT | 5/16 | 7.9 | 14.3 |
| SAE J517 100 R1AT | 3/8 | 9.5 | 16.5 |
| SAE J517 100 R1AT | 1/2 | 12.7 | 19.6 |
| SAE J517 100 R1AT | 5/8 | 15.9 | 22.8 |
| SAE J517 100 R1AT | 3/4 | 19.0 | 26.7 |
| SAE J517 100 R1AT | 1 | 25.4 | 34.9 |
| SAE J517 100 R1AT | 1 1/4 | 31.8 | 42.6 |
| SAE J517 100 R1AT | 1 1/2 | 38.1 | 49.6 |
| SAE J517 100 R1AT | 2 | 50.8 | 62.6 |
| SAE J517 100 R2AT | 1/4 | 6.4 | 14.2 |
| SAE J517 100 R2AT | 5/16 | 7.9 | 16.0 |
| SAE J517 100 R2AT | 3/8 | 9.5 | 18.0 |
| SAE J517 100 R2AT | 1/2 | 12.7 | 21.2 |
| SAE J517 100 R2AT | 5/8 | 15.9 | 24.2 |
| SAE J517 100 R2AT | 3/4 | 19.0 | 28.2 |
| SAE J517 100 R2AT | 1 | 25.4 | 36.5 |
| SAE J517 100 R2AT | 1 1/4 | 31.8 | 46.6 |
| SAE J517 100 R2AT | 1 1/2 | 38.1 | 53.4 |
| SAE J517 100 R2AT | 2 | 50.8 | 66.2 |
| DIN20023 EN856 4SH | 3/8 | 9.5 | 21.0 |
| DIN20023 EN856 4SH | 1/2 | 12.7 | 24.2 |
| DIN20023 EN856 4SH | 5/8 | 15.9 | 27.7 |
| DIN20023 EN856 4SH | 3/4 | 19.0 | 31.8 |
| DIN20023 EN856 4SH | 1 | 25.4 | 38.5 |
| DIN20023 EN856 4SH | 1 1/4 | 31.8 | 46.0 |
| DIN20023 EN856 4SH | 1 1/2 | 38.1 | 53.3 |
| DIN20023 EN856 4SH | 2 | 50.8 | 67.1 |
