sanitary hose braiding machine braided nylon copper stainless steel wire

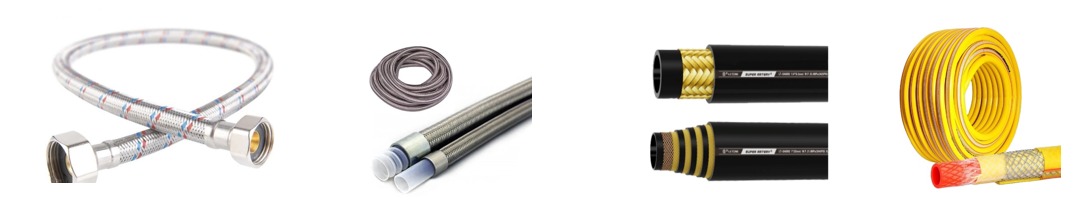

Applications: *Sanitary hose *Teflon hose *Hydraulic hose *High pressure wire/rubber/oil hose *SS wire sleeve *Air conditioning hose for car *car and motor rubber hose *sprayer rubber hose

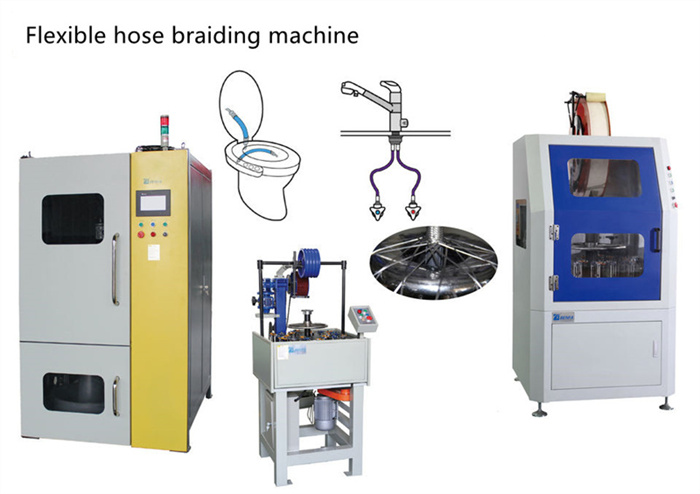

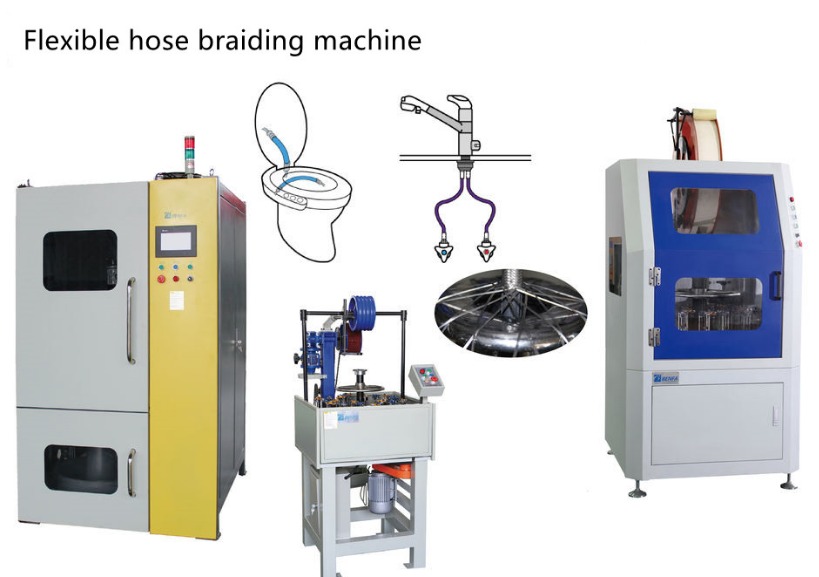

sanitary hose braiding machine
stainless steel wire braiding machine

140L Series vertical braiding machine

140L Series vertical braiding machine apply in sanitary cable ,high pressure rubber hose field. braiding material stainless steel wire ,textile glass fiber .

  • High automatic extent broken ,empty bobbin or no tube automatic machine self-closed.
  • Adopt adjustable speed to accommodate pitch.don't need to change gear.
  • High efficiency production three times than present usual machine per hour ,the max production reach to 98m/hour
  • Low noise ,transmission and pulling system adopt absorbing sound ,reducing shake and inserting equipment.
  • Easy maintenance ,transmission flexible structure easy install and remove
  • We can design the machine as customer request

Specifications:

Type
carrier
per
deck
carrier speed
[RPM]
braiding
machine
power
haul off
motor
power		 braiding pitch set up carrier tension
braided hose
OD		 Weight
BFB16L-140CFS 16 55rpm(max) 1.5KW*2 0.75KW electronic parameter set 0.4kg-5.0kg ≤16mm 300kg
BFB20L_140B 20 45rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤20mm 350kg
BFB20L_140B II 20 45rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤20mm 350kg
BFB20L-140BF 20 45rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤20mm 350kg
BFB20L-140CF 20 44rpm(max) 1.5KW 0.55Kw electronic parameter set 0.4kg-5.0kg ≤20mm 350kg
BFB24L-140CFS 24 42rpm(max) 1.5KW*2 0.55KW electronic parameter set 0.4kg-5.0kg ≤24mm 580kg
BFB24L-140AF 24 37rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB24L-140AF II 24 37rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB24L-140B 24 37rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB24L-140B II 24 37rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB24L-140BF 24 37rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB24L-140CF 24 42rpm(max) 1.5KW 0.55KW electronic parameter set 0.4kg-5.0kg ≤24mm 380kg
BFB20L+24L-140CFS I 24 37rpm(max) 1.5KW*2 0.75KW electronic parameter set 0.4kg-5.0kg ≤24mm 700kg
BFB24L+24L-140CFS I 24 37rpm(max) 1.5KW*2 0.75Kw electronic parameter set 0.4kg-5.0kg ≤24mm 700kg
BFB24L-140CS 24 37rpm(max) 1.5KW*2 0.55Kw electronic parameter set 0.4kg-5.0kg ≤24mm 630kg
BFB24L-140D 24 37rpm(max) 1.5KW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB24L-140DI 24 37rpm(max) 1.5xW   mechanical variable speed drive 0.4kg-5.0kg ≤24mm 380kg
BFB32L-140A 32 28rpm(max) 2 2KW   mechanical variable speed drive 0.4kg-5.0kg ≤32mm 430kg
BFB32-140B 32 28rpm(max) 2 2KW   mechanical variable speed drive 0.4kg-5.0kg ≤32mm 430kg
BFB32L-140CF 32 28rpm(max) 2.2KW 0.75KW ectronic pararmeter set 0.4kg-5.0kg ≤32mm 430kg
BFB36L-140AF 36 29rpm(max) 2.2KW   mechanical variable speed drive 0.4kg-5.0kg ≤36mm 520kg
BFB36L-140B 36 29rpm(max) 2.2KW   mechanical variable speed drive 0.4kg-5.0kg ≤36mm 520kg
BFB36L-140BF 36 29rpm(max) 2 2xw   mechanical variable speed drive 0.4kg-5.0kg ≤36mm 520kg
BFB36L-140CF 36 29rpm(max) 2.2KW 0.75KW electronic parameter set 0.4kg-5.0kg ≤36mm 520kg
BFB36L-140D 36 29rpm(max) 3.0KW   mechanical variable speed drive 0.4kg-5.0kg ≤36mm 520kg
BFB48L-140B 48 25rpm(max) 3.0KW   mechanical variable speed drive 0.4kg-5.0kg ≤48mm 550kg
BFB48L-140CF 48 25rpm(max) 3.0Kw 0.75KW electronic parameter set 0.4kg-5.0kg ≤48mm 550kg
