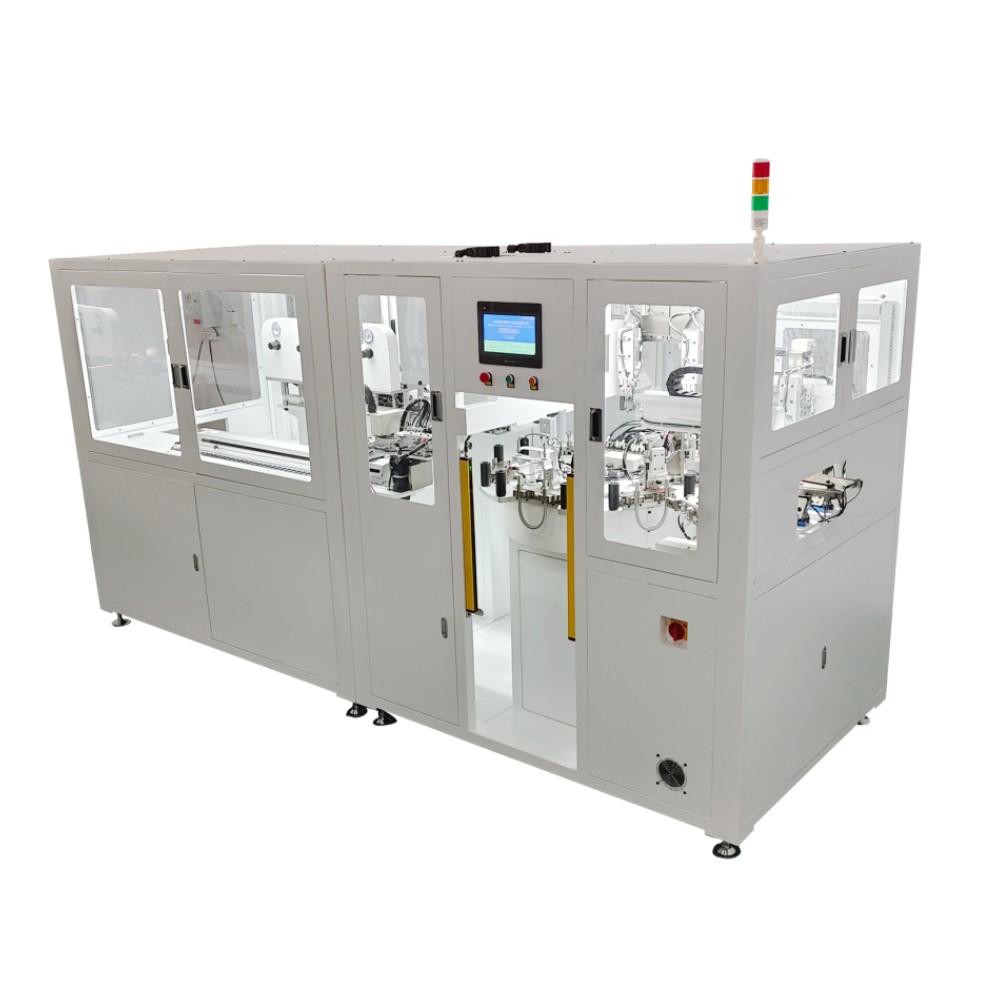

automatic hydraulic hose assembly crimping testing machine hose making production line

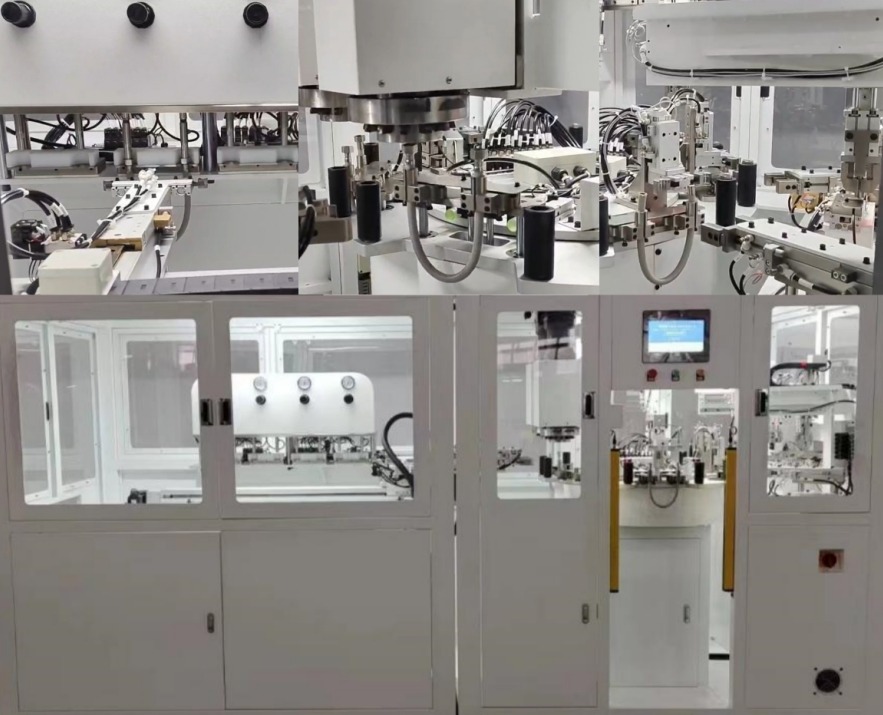

A hose automatic assembly machine that integrates feeding, assembly, and testing has replaced the functions of the five machines in the hose assembly process on the market:
pipe pressing machine, crimping machine,assembly machine, tightening machine, and testing machine, effectively reducing labor costs and alleviating personnel problems in enterprises.
When hose manufacturers are developing new products, our hose automatic assembly machine can also be assembled according to different joints and materials of hoses.
One hose automatic assembly machine can assemble multiple hose products.
hose making production line,hydraulic hose assembly machine,automatic hose testing machine,automatic hose crimping machine
Applications:
*Sanitary hose *Teflon hose *Hydraulic hose *High pressure wire/rubber/oil hose *SS wire sleeve *Air conditioning hose for car *car and motor rubber hose *sprayer rubber hose
5 in 1 Automatic Assembly Machine |
|
Motor Power |
8KW |
Voltage |
AC220V-50HZ (can be customized) |
Rated air pressure |
0.5MPa-0.7MPa |
Work efficiency |
450PCS/H |
Machine size |
3200*1400*2100mm |
Machine weight |
850kg |
5 Process |
pressing machines, crimping machines, automatic assembly machines, tightening machines, air tightness testing machines |
